100, 000pieces/Month
Wooden Box/Carton Box with Pallet
L/C, T/T, Western Union
CFZ
70~80
10~60
China
1580< Refractoriness< 1770
Long Time Materials
Refractory Material
Round, Square,etc
Zirconia
50*50*12mm, 100*100*15mm,etc
Product Description

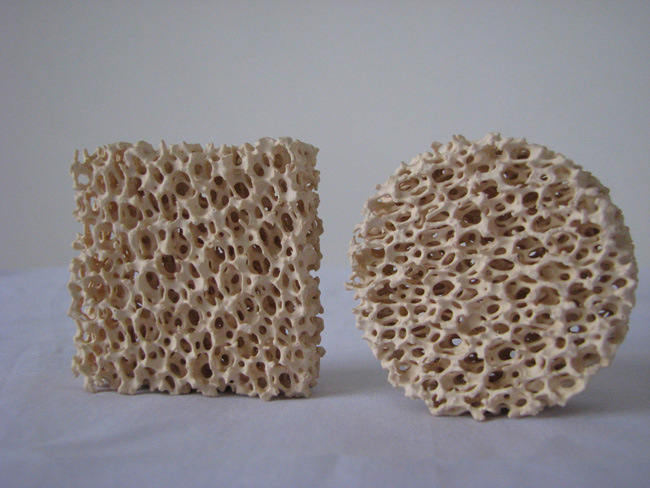

Zirconia ceramic foam filter is mainly used below 1700º C molten metal filtration. Suitable for all steel casting including carbon steel, stainless steel, cobalt, Nickel alloy castings etc. It can effectively remove inclusions in molten metal, adsorbed impurity, reduce the molten metal in the gas and the harmful element content, resulting decrease the reject rate, increased yield, produce high quality castings.
Using scope of zirconia ceramic foam filter:
Zirconia Ceramic Foam Filter is mainly used in the filtration of carbon steel; alloy steel, stainless steel, high temperature alloy castings, Because of the unique high-temperature components, but also suitable for high-precision aerospace castings.
Specification of zirconia ceramic foam filter:
We can produce round, square and other geometric shapes of zirconia ceramic foam filter.
Size:
*From 40mm to 70mm, thickness from 20mm to 25mm, bore density from 10PPI-20PPI.
*From 75mm to 120mm, thickness from 22mm to 25mm, bore density from 10PPI-20PPI.
*From 125mm to 150mm, thickness from 25mm to 35mm, bore density from 10PPI-20PPI.
| Chemical Composition | Content |
| ZrO2 | ≥70.00% |
| Al2O3 | ≤15% |
| Sic | ≤5% |
| Other | ≤10% |
| Materials | Zirconia |
| Working Temp.(Degree C) | ≤1700 |
| Color | Yellow |
| Pore Size(PPI) | 10 |
| Porosity(%) | 76~82 |
| Compression Strength(MPa) | ≥2.5 |
| Bulk Density(g/cm3) | 0.7~1.1 |
| Thermal Shock Resistance | Excellent |
| Application | Carbon steel low alloy steel |
| Size (mm) | Bore Density (PPI) |
| Φ40×20 | 10–30 |
| Φ50×22 | 10–30 |
| Φ60×25 | 10–30 |
| Φ70×25 | 10–30 |
| Φ90×25 | 10–30 |
| Φ100×25 | 10–30 |
| Φ125×30 | 10–30 |
| Φ150×35 | 10–30 |
