Shanghai, China
100, 000pieces/Month
T/T
FCF
10ppi,20ppi,30ppi,40ppi,50ppi,60ppi
12-25mm
Zirconia Casting
DXY
Export Package: Wooden Box+Pallet
China
842199900
Refractoriness> 2000
Long Time Materials
Refractory Material
Rectangle, Round, Square
Zirconia Oxide
50*50*13mm,200*150*15mm,400*250*15mm,etc
Product Description

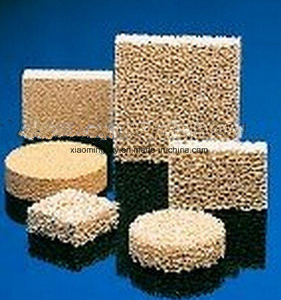

Zirconia Ceramic foam Filter Description
Apply to purity the molten carbon steel, steel alloy and stanless steel.
Material: ZrO2
Zirconia Ceramic foam Filter
1. Simplify purification of molten metal pouring system to improve the casting
microstructure
2. Reduce inclusions in castings to improve casting quality rate
3. Reduce the casting internal re-oxidation defects
4. Reduce casting machined surface defects
Technical Data:
Material: ZrO2
Colour: Yellow
Pore Density(PPi): 8~40
Porosity: 80~90%;
Refractoriness: 1700°C;
Bending Strength: 0.8~1.0 Mpa;
Copression strength: 1.0~1.2Mpa;
Density: 0.55~0.80 g/cm3
Thermal shock Resistance: 6 times /1100°C
Application: Carbon steel,steel alloy and stanless steel, and other metal in precision molding
Round shape regulate sizes:
φ40x11mm, φ40x15mm, φ50x15mm, φ50x20mm, 60x22mm,
70x22mm, 80x22mm , 90x22mm,100x22mm, 305x25mm
φ50×25mm, φ70×25mm ,φ90×25mm ,φ100×25 mm,φ125×30mm φ150×30mm
Square shape common sizes:
φ40x40x13mm, φ40x40x15mm, φ50x50x15mm, φ50x50x22mm, φ75x75x22mm,
φ50x75x22mm, φ100x75x22mm, φ100x100x22mm, φ55x55x15mm, φ150x150x22mm
***Zirconia Ceramic Foam Filter could be produced according as per your demand.***
| Feature | CFZ |
| Material | Zirconia |
| Temperature(celsius degree) | ≤1700 |
| PPI | 10~60 |
| Porsity(%) | 70~80 |
| Hardness (Mpa) | ≥1.5 |
| Density (g/cm3) | ≤1 |
| Thermal Stability(1100 celsius degree/per time) | 2 |
| AI2O3 (%) | 10~35 |
| SiO2 (%) | 0~5 |
| SiC (%) | _ |
| ZrO2 (%) | >70 |
| MgO | 0~10 |
| Others (%) | 0~10 |
| Application | Steel Casting |
