Shanghai, China
100, 000pieces/Month
L/C, T/T, D/P, Western Union, Paypal
CFZ
10~60

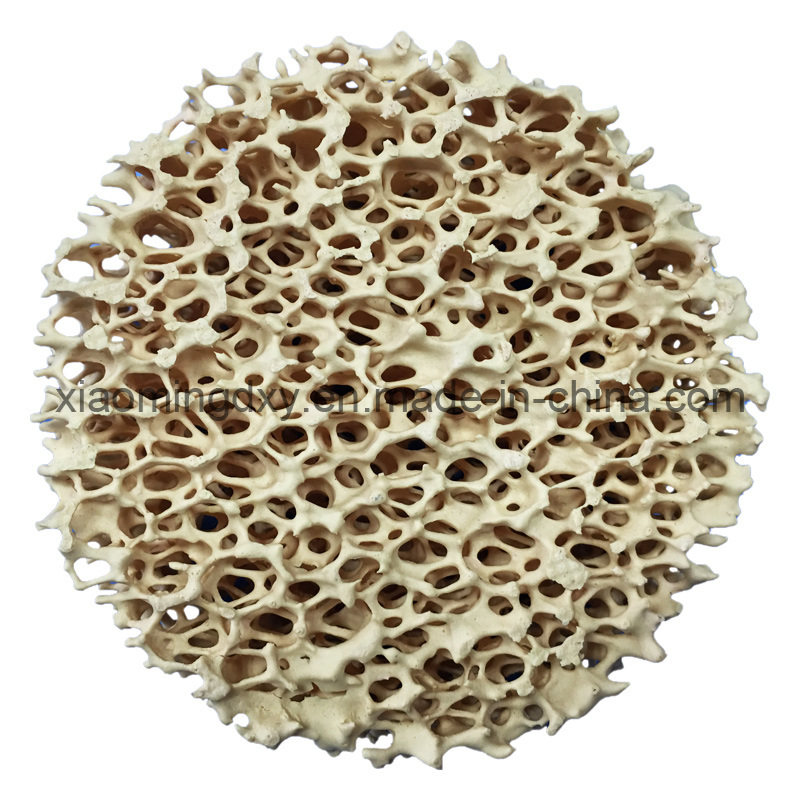

Zirconia Casting
DXY
Wooden Box/Carton Box with Pallet
50*50*12mm, 100*100*15mm, etc
China
1580< Refractoriness< 1770
Long Time Materials
Refractory Material
Round, Square,etc
Zirconia
70~80
Product Description
| Color | Yellow | PPI | 10-60 |
| Porosity (%) | 70~80 | Filtration capacity (kg/cm²) | ≥2.5 |
| Bulk density (g/cm³) | 0.9~1.1 | Temperature (celsius degree) | ≤1700 |
| Compressive strength (Mpa) | ≥1.75 | Heat shock | Excellent |
| Materials | Zirconia |
| Working Temp. ( ° C) | ≤ 1700 |
| Color | Yellow |
| Pore Size ( PPI ) | 10 |
| Porosity ( % ) | 76~82 |
| Compression Strength ( MPa ) | ≥ 2.5 |
| Bulk Density ( g/cm 3 ) | 0.7~1.1 |
| Thermal Shock Resistance | Excellent |
| Application | Carbon steel low alloy steel |
| Dimensions mm | Flow rate(kg/s) | Total capacity | |
| Carbon steel | High-alloy steel | kg | |
| 40 × 40 × 20 | 2 | 2.5 | 30 |
| 50 × 50 × 22 | 3 | 4 | 50 |
| 55 × 55 × 22 | 4 | 5 | 60 |
| Φ 50 × 22 | 2.5 | 3 | 40 |
| Φ 60 × 25 | 3.5 | 4.5 | 70 |
| Φ 70 × 25 | 4.5 | 6 | 95 |
| Φ 75 × 25 | 5 | 6.5 | 110 |
| Φ 80 × 25 | 6 | 7.5 | 125 |
| Φ 90 × 25 | 8 | 9.5 | 160 |
| Φ 100 × 25 | 9.5 | 12 | 190 |
| Φ 120 × 25 | 11 | 14 | 220 |
| Φ 150 × 30 | 12.5 | 15 | 330 |
