Honeycomb Ceramic Heater Introduction:
The honeycomb ceramic as heat exchange media is the key part for heat storage HTAC(High Temperature Air Combustion) technology, which has been widely applied in all kinds of pushing-steel heating furnace, RTO(Regenerative Thermal Oxidation), stepping heating furnace, heat treatment furnace, forging furnace, dissolving furnace, steel wrapping/middle wrapping baking apparatus, soaking pit, radiation tap incendiary apparatus, covering furnace, high temperature hot-blast stove in metallurgical machine building and all kinds of ceramic cellar stove, glass cellar stove in building materials, and all kinds of tap heating stove, splitting stove, other industrial stove cellar, too. Honeycomb ceramics as heat storage body, by the advantage of large specific surface area, small heat resistance, good thermal conductivity, excellent thermal shock resistance, realize quickly exchanging heat; Reducing energy in the strict sense (up to 97% of true thermal energy can be recovery and also it can absorb NOx more than 40%). Honeycomb ceramic heat accumulation substrate heat capacity can be achieve at more than J/kgk1000. Use a temperature≥ 1700° C in the heating furnace, roaster, soaking furnace, pyrolysis furnace, fuel can be savings of more than 40%, increase in production for more than 15%. The flue gas temperature below 150° C. So It has got a wide application in many industrial productions.

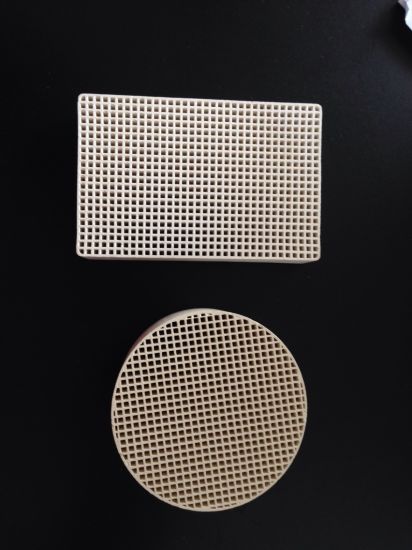

Heat Exchanger Honeycomb Ceramic
Material: Cordierite, Mullite, Corundom Mullite (1500 celsius degree)
Size: 150*150*300/150/100/50mm
Hole size: 25/43/34/50cells
Heat exchanger Honeycomb Ceramic Advantages:
*low heat expansion coefficient,
*large surface area, good heat stability and anticorrosion
*high temperature heat accumulation and exchange in industrial waste gas treatment
Applications:
*NOx purification system in the smoke of the thermal power plant
*The harmful gas purification system in rubbish burning
*Poison gas purification system in chemical and mining industries. The slag filter for casting production in the metallurgical industry. The catalyst substrate stuffing material for chemical industry colums and Contact combustion.
| Physical Properties | Materials |
| Corundum-mullite | Mullite | Cordierite-mullite | Cordierite |
| Compressive strength | Mpa | C axis≥20 | C axis≥20 | C axis≥20 | C axis≥20 |
| Density | g/m3 | >0.9 | 0.6-1.1 | 0.5-0.9 | 0.4-0.8 |
| Coefficient of thermal expansion RT-800Celsius Degree | 1/Celsius Degree | ≤6x10-6 | ≤5.5x10-6 | ≤3x10-6 | ≤2.5x10-6 |
| Thermal shock resistance | Celsius Degree | ≥300 | ≥300 | ≥400 | ≥500 |
| Softening temperature 0.1Mpa | Celsius Degree | ≥1500 | ≥1450 | ≥1350 | ≥1250 |
| Specific heat capacity | J/kgk | ≥800 | ≥800 | >750 | ≥750 |
| Broadness | Height | Length | Channels | Oouter wall thickness | Inner wall thickness | Channel width | Free surface | Surface | Surface |
| mm | mm | mm | cross section | mm | mm | mm | % | m2/PC | m2/m3 |
| 150 | 150 | 300 | 5x5 | 5.50 | 3.00 | 25.40 | 72 | 0.94 | 142 |
| 150 | 150 | 300 | 13x13 | 2.50 | 1.80 | 9.49 | 68 | 2.10 | 314 |
| 100 | 100 | 150 | 17x17 | 1.30 | 1.20 | 4.60 | 61 | 0.86 | 574 |
| 150 | 150 | 300 | 25x25 | 1.30 | 1.20 | 4.75 | 63 | 3.70 | 556 |
| 100 | 100 | 150 | 26x26 | 2.30 | 0.75 | 2.95 | 59 | 1.26 | 839 |
| 100 | 100 | 150 | 33x33 | 3.30 | 0.65 | 2.20 | 53 | 1.50 | 1000 |
| 150 | 150 | 300 | 40x40 | 1.50 | 0.68 | 3.00 | 64 | 5.90 | 881 |
| 150 | 150 | 300 | 50x50 | 1.30 | 0.55 | 2.40 | 63 | 7.40 | 1100 |
| 150 | 150 | 300 | 60x60 | 1.30 | 0.55 | 1.92 | 59 | 8.40 | 1255 |
