Ceramic Honeycomb Gas Heater Honeycomb Cordierite Ceramic Substrate Heater

You are here: Home » Products » Accumulated/Storage Filter/Substrate » Ceramic Honeycomb Gas Heater Honeycomb Cordierite Ceramic Substrate Heater

Ceramic Honeycomb Gas Heater Honeycomb Cordierite Ceramic Substrate Heater

Ceramic Honeycomb Gas Heater Honeycomb Cordierite Ceramic Substrate Heater

Quantity:




Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
100, 000pieces/Month
Payment Terms:
L/C, T/T, Western Union

Model NO.:
HCH
Holes:
25holes, 40holes, 43holes, 50holes, 60holes
Hole Shape:
Round, Square, Hexagonal, Triangular
Max.Working Tem. (Celsius Degree):
1320-1700
Structure Material:
Ceramic
Style:
Storage-Type
Ceramic Heating Equipment Type:
Ceramic Heater
Recuperative Heat Exchanger Type:
Double Tube Sheet Heat Exchanger
Heat Transfer Surface:
Plate Heat Exchanger
Trademark:
DXY
Transport Package:
Wooden Box and Pallet or According to Your Demand
Specification:
150x150x150mm, 150x150x300mm, dia125x153mm etc
Origin:
China
HS Code:
6909190000
Type::
Ceramic Heating Equipment
Certification::
ISO
Structure::
Ceramic
Brand::
Dxy
Materials::
Cordierite/Corundum Mullte/Mullite/Silicon Oxide
Usage::
Rto

Product Description

Product Description

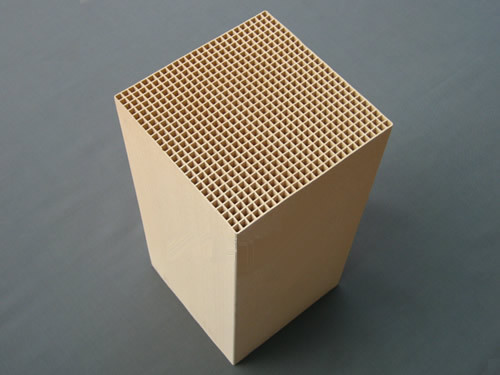

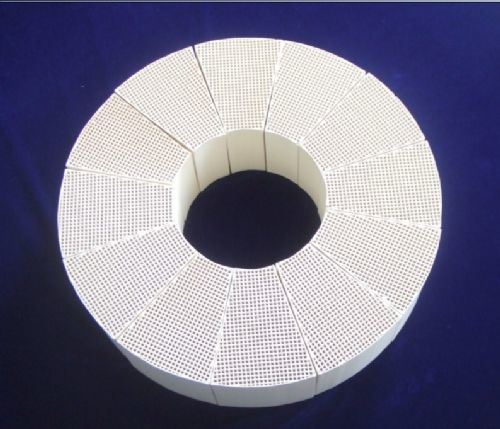

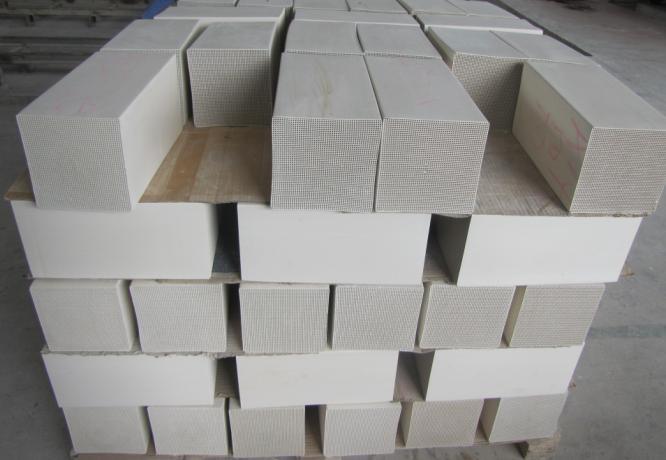

Honeycomb Monolith Ceramic are a new kind of industrial ceramic product developed in recent
years. They have a large surface area, higher air vent rate. Ceramic Honeycomb as the media of
heat storage and heat exchange, has been widely applied in the fields of metallurgy, petroleum &
chemical industry, electric power, boiler and so on. Honeycomb ceramic are made of corundum-mullite, cordierite-mullite, cordierite, mullite, zirconia-mullite, carbo-corundum and so on with different hole shapes, such as square hole and hexagon hole, different
wall thicknesses from 0.5mm to 5mm, and different figure specs, such as 100×150×100mm,
100×100×100mm, 150×150×150mm, 150×150×300mm, and so on.

Ceramic Honeycomb as the media of heat storage and heat exchange, has been widely applied
in the fields of metallurgy, petroleum & chemical industry, electric power, boiler and so on. It has
high surface area, small resistance and thermal expansion, strong chemical corroding resistance,
excellent thermal shock resistance.

Manufacturer of Honeycomb ceramic for RTO:
Size:100X100X100mm 150X150X300mm 100x100x150mm
ISO9001:2008 Certified
Material: Monolith, Cordierite

Ceramic Honeycomb Gas Heater Honeycomb Cordierite Ceramic Substrate Heater

Chemical analysis

Composition	Value (%)
SiO2	28-51
Al2O3	45-70
MgO	~
Fe2O3	≤1.0
TiO2	≤3.0
K2O+Na2O+CaO	≤1.0

Physical properties

No	Index	Unit	Value
1	Gross Density	g/cm3	2.3~2.4
2	Average Linear Expansion(20-1000°C)	10-6/k-1	≤6.5
3	Specific Heat Capacity	J/Kg.C	850~1100
4	Heat Conductivity	W/MK	1.0~2.0
5	Soft Temp.	°C	1200
6	Maximum Application Temp.	°C	1200
7	Corrosion Resistance Against Acid	%	≥96.7

Dimension and other physical properties

Dimension	Quantity of channels	Wall thickness (mm)	Channel Width (mm)	Surface area (m2/m3)	Void section (%)	Packaging density (kg/ m3)	Weight per piece (kg)
150×150×300	25×25	1.0	4.96	580	68	681	4.60
150×150×300	32×32	1.0	3.66	695	61	710	4.80
150×150×300	40×40	0.7	3.03	891	65	770	5.20
150×150×300	43×43	0.7	2.77	940	63	784	5.30
150×150×300	50×50	0.6	2.39	1090	63	829	5.60
150×150×300	60×60	0.5	1.99	1303	63	858	5.80
