Shanghai, China
50cbm/Month
L/C, T/T, Western Union
CHC
Ceramic
Aluminum Heat Exchanger
Heater
Storage-Type
Ceramic Heater
DXY
Wooden Box/Carton Box with Pallet
All size
China
690919000
Ceramic Heating Equipment
100*100*100, 150*150*150, 150*150*300
Cordierite/Corundum Mullte/Mullite/Silicon Oxide
25holes, 40holes, 43holes, 50holes, 60holes
Round, Square, Hexagonal, Triangle, etc
Regenerative Heat Exchanger

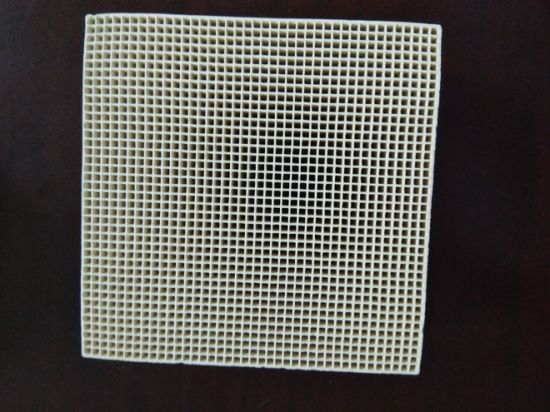

Product Description
Composition | Value (%) |
Al2O3 | 70-80 |
SiO2 | 15-25 |
MgO | 0-2 |
Fe2O2+TiO2 | 1-3 |
Others | <5 |
Index | Unit | Value |
Density | g/cm3 | 2.3-2.7 |
Coefficient of heat expansion | (X10-6K-1) (20-800celsius degree) | ≤6 |
Specific Heat | (J/Kg.k) (20~1000celsius degree) | 1100~1300 |
Thermal Conductivity | (20~1000celsius degree) | 1.5~2.0 |
Impact Thermal Resistance | (celsius degree/min) | ≥300 |
Max.Working Temp. | celsius degree | 1550 |
Water absorption | % | 15~25 |
