Shanghai, China
100, 000pieces/Month
L/C, T/T, Western Union
FCF
10ppi,20ppi,30ppi,40ppi,50ppi,60ppi
11-50mm
DXY
Export Package: Wooden Box+Pallet
China
842199900
1770< Refractoriness< 2000
Long Time Materials
Refractory Material
Rectangle, Round, Square
Silicon Carbide (SiC)
50*50*13mm,200*150*15mm,400*250*15mm,etc
Product Description

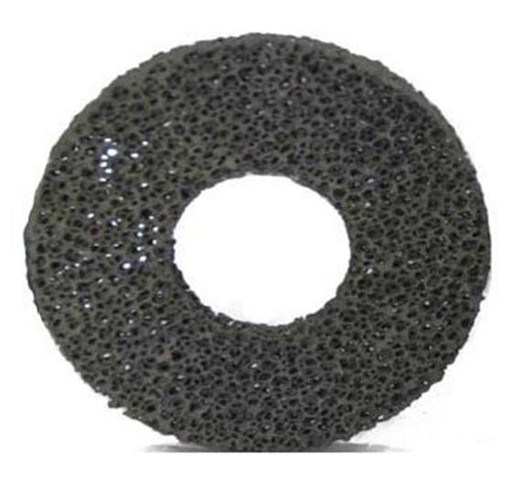

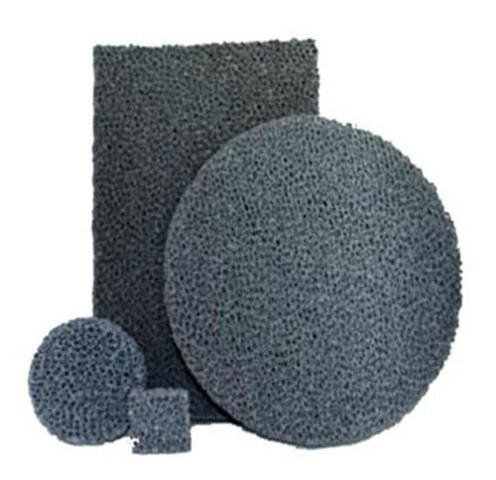

Silicon Carbide Ceramic Foam Filter:
SiC Ceramic Foam Filter is a phosphate-free product, it is characterized by high porosity and mechanochemical stability and excellent resistance to thermal shock and corrosion from molten iron. It can effectively remove inclusions, reduce trapped gas and provide laminar flow when molten sic filtrated, it is machined to tight dimensional tolerance during production, this combination of physical properties and precise tolerance make them first choice for molten non-ferrous filtration. It is also widely used as filtrating media for iron-purification.
Advantages:
*Precise Dimension Tolerance
*High Mechanical Strength
*Chemical Stability and Corrosion-resistance for molten aluminum.
*Phosphate-free, No Pollution for Environment
*Purifying Liquid Aluminum, Improving Quality
*Reduce Defects
*Reduce Cost
*Increase Yield Rate
*Easy to Use
*Size from 40-600mm available.
| Porosity | 80~90 |
| Compression Strength | ≥1.0Mpa |
| Bulk Density | ≤0.5g/cm3 |
| Thermal Resisitance | 1300Degree C~R.T., 5 times |
| Dimensions (mm) | Pouring Rate(kg/s) | Filtration Capacity(kg) | ||
| Grey Iron | Ductile Iron | Grey Iron | Ductile Iron | |
| 40x40x22 | 4 | 3 | 65 | 32 |
| 50x50x22 | 6 | 4 | 100 | 52 |
| 75x50x22 | 9 | 6 | 150 | 75 |
| 75x75x22 | 14 | 9 | 220 | 100 |
| 100x50x22 | 12 | 8 | 200 | 100 |
| 100x75x22 | 18 | 12 | 300 | 150 |
| 100x100x22 | 25 | 16 | 400 | 200 |
| 150x150x22 | 50 | 36 | 900 | 450 |
