Metal Honeycomb Substrate Catalytic Converter for Puring System
You are here: Home » Products » Honeycomb Metal Substrate » Metal Honeycomb Substrate Catalytic Converter for Puring System

Metal Honeycomb Substrate Catalytic Converter for Puring System

Quantity:
sharethis sharing button
  • Shanghai, China

  • 10, 000pieces/Month

  • L/C, T/T, Western Union

  • MHS

  • The Brake Noise

  • Catalytic Converter

  • Europe

  • SS304, SS316

  • 100-400cpsi

  • Auto/Motorcycle Gas Treatment

  • DXY

  • Wooden Box and Pallet/Packed as Customers′ Need

  • China

  • 84213990

  • Catalytic Converter

  • Steel

  • Euro V

  • ISO9001, TS16949

  • The Noise of Engine

  • Mechanical Noise

Product Description


Metal Honeycomb Substrate Catalytic Converter for Puring System

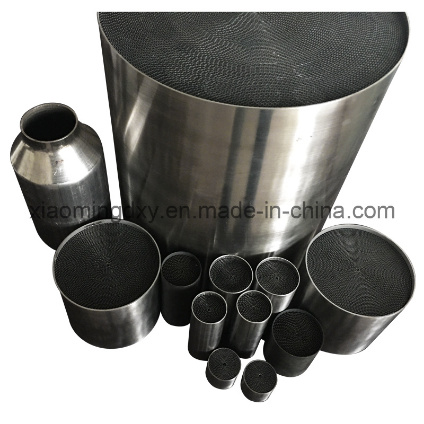

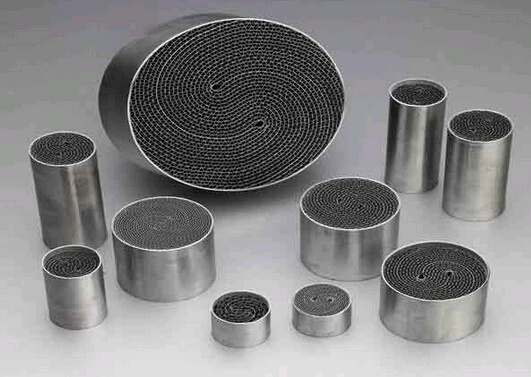

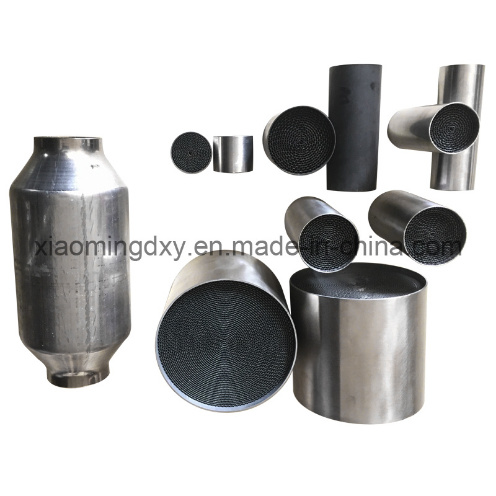

Metal Honeycomb Substrate

Honeycomb metal substrate has the advantages of fast burning, small volume, high mechanical
strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike. We can
make 100CPSI, 200CPSI, 300CPSI, 400CPSI AND 600CPSI honeycomb metallic substrate
in various shapes, Such as round, oval, racetrack and other customized shapes. We constantly
improve the quality and service; our products get high reputation from customers.


Specifications
Suitable for Auto, diesel, motorcycle
Shape: Rotundity, oval, race track, rectangle
Euro II, III, IV

Customization availableMetal Honeycomb Substrate Catalytic Converter for Puring System
Metal Honeycomb Substrate Catalytic Converter for Puring System


Metal Honeycomb Substrate Catalytic Converter for Puring System
Shape Shell size(mm) Core size(mm) Cell density(CPSI)
Rotundity Φ 30×22 Φ 28×20 100/200/300/400
Rotundity Φ 35×20 Φ 33×20 100/200/300/400
Rotundity Φ 35×30 Φ 33×30 100/200/300/400
Rotundity Φ 35×40 Φ 33×40 100/200/300/400
Rotundity Φ 35×50 Φ 33×50 100/200/300/400
Rotundity Φ 35×60 Φ 33×60 100/200/300/400
Rotundity Φ35 × 70/100/130 Φ33 × 60/90/120 100/200/300/400
Rotundity Φ42 × 70/100/130 Φ40 × 60/90/120 100/200/300/400
Rotundity Φ45 × 70/100/130 Φ43 × 60/90/120 100/200/300/400
Rotundity Φ63,5 × 85/100/130 Φ60,5 × 74,5/90/120 200/300/400
Rotundity Φ73 × 70/100/130 L Φ70 × 60/90/120 200/300/400
Rotundity Φ93 × 70/100/130 Φ90 × 60/90/120 200/300/400
Rotundity Φ100,3 × 100/130 Φ98,3 × 90/120 600
Rotundity Φ144 × 150/152,4 Φ142 × 140/142,4 200/300/400
Rotundity Φ190 × 200 Φ188 × 190 200/300/400
Rotundity Φ420 × 100/130 Φ416 × 90/120 300/400
Race track 123×63×85 120×60×75 200/300
Race track 123×63×100 120×60×90 200/300
Race track 78,5×52×104 76,5×50×90 200/300
