Infrared honeycomb ceramic plate has an important application in the field of gas heating for technical ceramics. To improve the efficiency of heat exchange, radiation gas heaters should give out very little convection heat, and the wave length of radiation has to be in the infrared range. The gas flows through many parallel holes to the largest possible surface area for complete combustion.
Our developed Cordierite material has good resistance against mechanical and thermal shock under normal operating conditions. Infrared Honeycomb Ceramic Plate, It's widely used in gas radiant heaters and plays the most important part in those applications. The interlaced corrugated surface of the ceramic tile combined with honeycomb design basis provides a superb surface area and working burning surface. We have also adopted the best raw material and new formula to maximize the micro-porosity of the tile. With all these advantages, the oxygen mix completely with the gas, burning without flame, emitting high efficiency far infrared ray and radiant heat, saving up to 40%-50% energy cost.

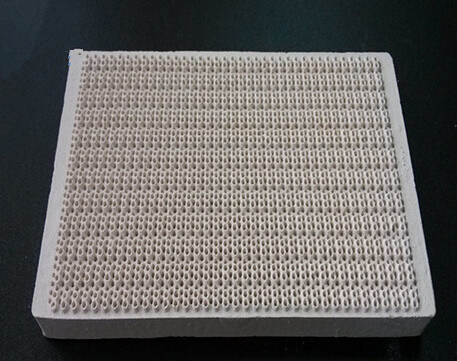

Gas burning infrared ceramic plate:
*Size: 135*95*13mm etc
*Easy installing
*High thermal storage
*Cordierite material
Advantages:
*Outstanding Strength
*Uniform radiant burning
*Excellent thermal shock resistance
*Save up to 30~50% energy cost
*Burn without flame, high burning efficiency, low noise
*Reduce the harmful gas such as CO, NOx, etc more than 90%
| Chemical composition | Content | Chemical composition | Content |
| Al 2 O 3 | 20-85 | Acid resistance % | ≥ 99.8% |
| SiO 2 + Al 2 O 3 | 92 | Alkali resistance % | ≥ 86% |
| Fe 2 O 3 | <0.8 | Refractoriness ° C | ≥ 1200 ° C |
| Out porous ratio | 7.0-10% | Thermal stability | No crack after three times |
mm
Size | mm
D × H | m 2 /g
Specific area | %
Void volume | m 3 /m 3 | MPa/m | Mm/s(ks/m) | mm | Hardness(Mohs) |
| 6-150 | 6-150
|
150-50 | 1200-605 | 61-97 | 0.5-15 | 1-5 | 3-1.6 | 4.7-9.7 | 6.5 |
