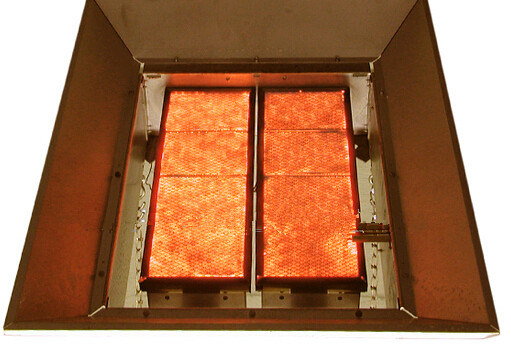

Infrared ceramic plate is made of high purity cordierite material and widely used in gas radiant heaters where it saves 20%-50% energy cost and reduces more than 90% of the harmful gas emission.
Our special designed infrared ceramic plate provides a superb surface area and working burning surface due to its interlaced corrugated surface of the ceramic plate combined with honeycomb basis.
Honeycomb ceramic as the infrared combustion ceramic plate is made by the high purity cordierite material and used in the gas-fired stove where it saves 20%-50% energy cost and reduces more than 90% of the harmful gas emission. This product has good thermal shock resistance (no cracks on the product if the honeycomb ceramic with 1000 is in the water with 20 for 3 times), high mechanical strength (crushing strength is 20MPa on the top and 5MPa on the side), good endurance for high temperature, high resistance for erosion. If coated with a black catalyst, the honeycomb ceramic can transfer the heat by infrared radiation style.
Infrared ceramic plate made from high purity cordierite material and other components, widely used as the burner media in aplliance such as gas burner, oven, grill BBQ, heater, rue biscuit, smokeless oven etc. This product has good thermal shock resistance (no cracks on the product if the honeycomb ceramic with 1000 is in the water with 20 for 3 times), high mechanical strength (crushing strength is 20MPa on the top and 5MPa on the side), good endurance for high temperature, high resistance for erosion.
Application:
Infrared ceramic plate is widely used in various burners, ovens, fryers, heaters and barbecue set which burn gas
Advantages:
*20%-50% energy saving
*Mixes oxygen completely with the gas, burning efficiently with no flame and little noise
*Operating safety without being influenced by wind when operating outdoor
*Decreasing the CO and NOx poisonous gas disposal and remove harmful
Specification
mm | Fuel gas | hole | Cells/In2(CPSI) | suuface |
| NG | LPG | square | round | square | round | plane | Convex diamond
Pattern | Concave
Cinquefoil
pattern | Corrugatoin
pattern |
| Φ100 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ110 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ120 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ150 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ80 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ135 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ160 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
