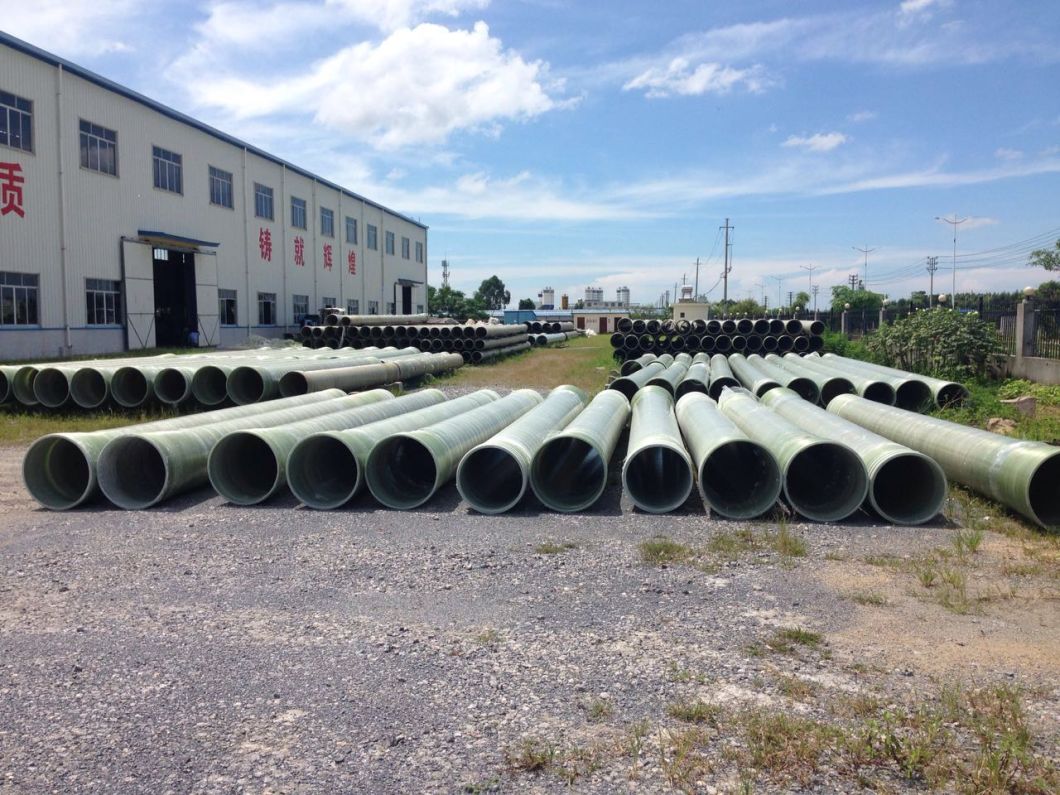

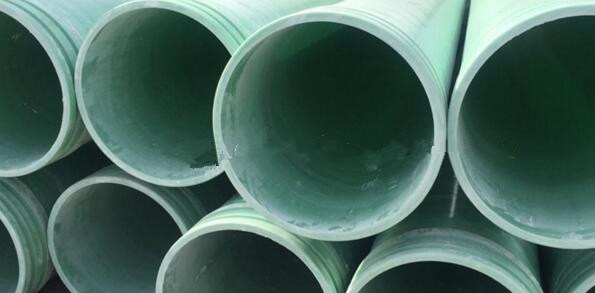

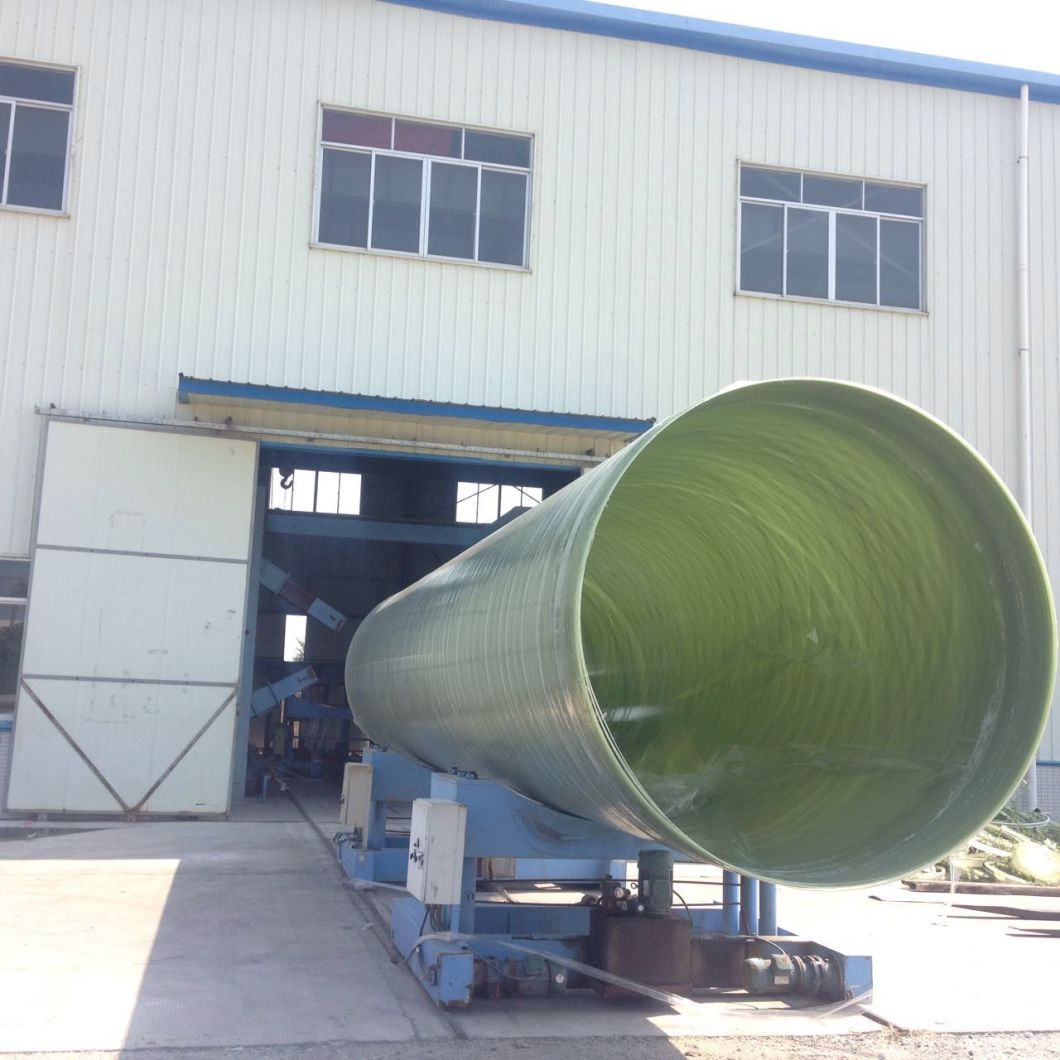

Light Weight and High Strength GRP/Fiberglass/composite/FRP Pipe
FRP Process Pipe/Industrial composite Fiberglass FRP Pipe
Fiberglass pipe Description:
1. Structure of FRP Process Pipe Description
1) Antifouling, anti-moth, non-rust, keeping water from pollution; It also apply to carry the polluted water, slurry and seawater;
2) The ability of water resistance and corrosion resistance can prolong product service life;
3) The connection of insert makes airproof excellent; project cost can be reduced without building concrete protect layer;
4) Few joint and various of joint methods not only reduce water resistance but also project cost;
5) Good insulation, heat resistance, combustration resistance; No distortion in high temperature of 80-100 degree;
6) With light weight, high strength, the hoisting cost can be decreased, also expedite installation proceeding;
7) Low maintenance expense: no need for antirust, anti-pollution, insulation, heat preservation and the relative examination and repair; cathode protection free also can save the project maintenance cost.
2. Main Features of FRP Process Pipe
1) Corrosion resistance
2) Lightweighta high strength
3) Easy installation
4) Low temperature-perform
3.Connection way:
Connection way can adopt screw connection, spigot and socket connection, flange connection, plain end butt connection, sleeve connection, etc connection way.
FRP add sand pipe specifications |
| Rigidity | 2500 Pa | 3750 Pa | 5000 Pa | 7500 Pa | 10000 Pa |
| pressure(Mpa) | 0.25 | 0.6 | 1. 0 | 0.25 | 0.6 | 1. 0 | 0.25 | 0.6 | 1. 0 | 1.6 | 0.25 | 0.6 | 1. 0 | 1.6 | 0.25 | 0.6 | 1. 0 | 1.6 |
| Thickness |
| Diameter |
| 300 | 5 | 5 | 5 | 5 | 5 | 5 | 5.4 | 5.3 | 5.3 |
| 6.1 | 6.1 | 6 | 5.8 | 6.7 | 6.7 | 6.5 | 6.3 |
| 400 | 5.7 | 5.7 | 5.5 | 6.3 | 6.3 | 6.3 | 6.8 | 6.8 | 6.6 |
| 8 | 8 | 7.5 | 7.4 | 8.5 | 8.7 | 8.3 | 8.1 |
| 500 | 6.9 | 6.7 | 6.6 | 7.7 | 7.7 | 7.5 | 8.5 | 8.4 | 8 |
| 9.7 | 9.5 | 9.1 | 8.8 | 10.7 | 10.5 | 10.1 | 9.8 |
| 600 | 8.2 | 7.7 | 7.7 | 9.2 | 9.1 | 8.5 | 10.2 | 9.7 | 9.3 |
| 11.5 | 11.4 | 10.7 | 10.5 | 13 | 12.4 | 11.7 | 11.5 |
| 700 | 9.5 | 8.8 | 8.6 | 10.8 | 10.3 | 10 | 12 | 11.3 | 10.7 |
| 13.6 | 13 | 12.4 | 11.9 | 15.2 | 14.5 | 13.5 | 13.1 |
| 800 | 10.9 | 10.2 | 9.9 | 12.4 | 11.5 | 11 | 13.7 | 13.2 | 12.1 |
| 15.8 | 14.7 | 14 | 13.5 | 17.5 | 17 | 15.2 | 14.8 |
| 900 | 12.2 | 11.4 | 10.8 | 14 | 12.9 | 12.3 | 15.5 | 14.4 | 13.5 |
| 17.9 | 16.9 | 15.6 | 15.1 | 19.8 | 18.6 | 17.1 | 16.6 |
| 1000 | 13.5 | 12.4 | 11.9 | 15.6 | 14.2 | 13.5 | 17.3 | 16 | 14.9 |
| 20 | 18.5 | 17.3 | 16.5 | 22.2 | 21 | 18.8 | 18.2 |
| 1200 | 16 | 14.7 | 14 | 18.5 | 16.8 | 16.2 | 21 | 19.1 | 17.8 |
| 23.7 | 22 | 20.3 | 19.7 | 26.3 | 23.6 | 22.4 | 21.6 |
| 1400 | 18.2 | 17 | 16 | 21.5 | 19.6 | 18.5 | 24 | 22 | 20.3 |
| 27.4 | 25.4 | 23.4 | 22.6 | 30.5 | 27.5 | 26.4 | 25.2 |
| 1600 | 21.3 | 19.2 | 18.3 | 24.1 | 22.2 | 21 | 27.6 | 24.8 | 23 | 22.4 | 31.3 | 29 | 26.6 | 25.8 | 34.6 | 31.2 | 29.8 | 28.4 |
| 1800 | 23.3 | 21.5 | 20.5 | 27.2 | 25 | 23.5 | 30.8 | 27.6 | 25.8 | 25.2 | 35 | 32.4 | 29.9 | 29 | 39 | 35 | 33.1 | 31.4 |
| 2000 | 25.9 | 24 | 22.5 | 30 | 27.5 | 26 | 34 | 30.5 | 28.5 | 27.7 | 38.7 | 36 | 33 | 31.8 | 43 | 38.6 | 36.6 | 34.8 |
| 2200 | 28.5 | 26.1 | 24.7 | 32.8 | 30 | 28.5 | 37 | 33.5 | 31.2 | 30.4 | 43 | 39.3 | 36.2 | 35 | 47.1 | 42.3 | 40.2 | 38.1 |
| 2400 | 31.1 | 28.4 | 26.8 | 36 | 32.8 | 30.9 | 40.3 | 36.4 | 34 | 33.2 | 46.2 | 42.8 | 39.2 | 38 | 51.5 | 46.2 | 44 | 41.5 |
| 2600 | 34 | 30.7 | 29 | 39 | 35.2 | 33.4 | 44 | 39.4 | 36.5 | 35.8 | 50.4 | 48 | 42.4 | 41.2 | 55.7 | 50 | 47.5 | 45.5 |
5.FRP pipe Advantages
(1)High strength, Used for the carriageways directly buried, don't need concrete cover, Can speed up the construction progress
(2)Flexibility, Resistant to outside pressure and damage
(3)Electric insulation, flame retardant, heat resistant performance is good, can be use for a long time in 130 degrees heat and not easy deformation.
(4)Resistance corrosion, long service life, can resist acid, alkali and salt corrosion; can be used more than 50 years.
(5)Smooth inner wall, protect cable
(6)Sealing circle and socket connection, easy to handling
(7)Light weight, easy to construction, saves cost
(8)Applicability range is wide: Glass fiber reinforced plastic cable protection tube is buried cable laying in the protection work, also used in Cable Bridge, high demand across the occasion.
FAQ
Q:Are you a trading company or a manufacture factory?
A: Our factory is one of the biggest FRP products, FRP machines manufacture in china.
Q: Can your factory give us a best quotation?
A:Yes,we can.
Q: how about after-sales service?
A: 1 year free warranty, Lifetime technical service support.
Q: How can i install the production line and get a commissiong?
A: We may send our engineer for installation and commissioning, but relevant cost will be paid by you.
