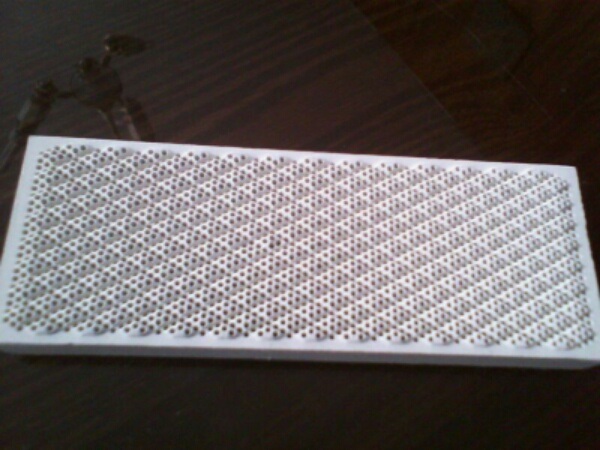

Infrared Ceramic Plate Information:
Infrared ceramic plate is made of high purity cordierite material and widely used in gas radiant heaters where it saves 20%-50% energy cost and reduces more than 90% of the harmful gas emission.
Our special designed infrared ceramic plate provides a superb surface area and working burning surface due to its interlaced corrugated surface of the ceramic plate combined with honeycomb basis. We have been innovatively searching for the best raw material and new formula to maximize the micro-porosity of the tile. Infrared honeycomb ceramic plate used in combustion oven, using modern advanced science and technology and selecting high-purity and high-quality cordierite. They have the advantages of high heat efficiency and low energy consuming, low pollution, economical and practical, easy installing, high ventilative rate and strong heat radiation, etc. Compared with the electrical drying stove and common gas-fired combustion stove.
Honeycomb ceramic as the infrared combustion ceramic plate is made by the high purity cordierite material and used in the gas-fired stove where it saves 20%-50% energy cost and reduces more than 90% of the harmful gas emission. This product has good thermal shock resistance (no cracks on the product if the honeycomb ceramic with 1000 is in the water with 20 for 3 times), high mechanical strength (crushing strength is 20MPa on the top and 5MPa on the side), good endurance for high temperature, high resistance for erosion.

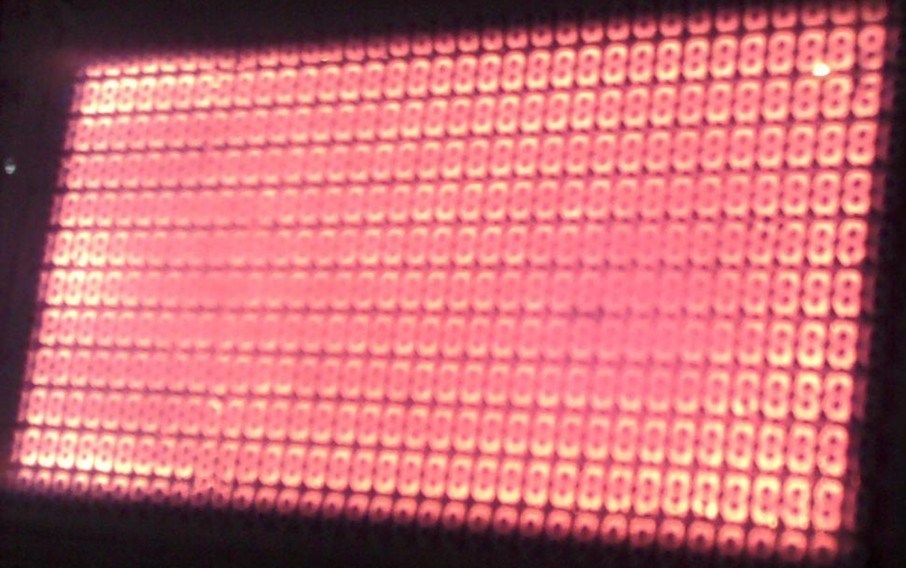

If coated with a black catalyst, the honeycomb ceramic can transfer the heat by infrared radiation style and this combustion style has more outstanding advantages comparing to the normal gas-fired stove combustion as below:
1.20%-50% energy saving
2. Mixes oxygen completely with the gas, burning efficiently with no flame and little noise.
3. Operating safety without being influenced by wind when operating outdoor.
4. Decreasing the CO and NOx poisonous gas disposal and remove harmful.
Usage:
* For gas heater
* Easy installing
* High thermal storage efficiency
* Cordierite
Advantages as follows:
*Outstanding Strength
*Uniform radiant burning
*Excellent thermal shock resistance
*Save up to 30~50% energy cost
*Burn without flame, high burning efficiency, low noise
*Reduce the harmful gas such as CO, NOx, etc more than 90%
| Barbecues | Gyro Cookers |
| Broilers | Pizza Ovens |
| Convection Ovens | Pressure Fryers |
| Deep Fat Fryers | Process |
| Evaporators | Ranges |
| Gas Ovens | Rotisserie Ovens |
| Griddles | Space Heaters |
| Greenhouse CO2 | Sear Cookers |
| Item | Index | Specifications |
| Material | Cordierite | We can provide you
the product by you desire. |
| Water absorption | 50.4% |
| Open Porosity | 61% |
| Specific gravity | 0.9-1.10Kg/cm3 |
| Thermal expansion coeffecient | 1.5-3( × 10-6K-1) |
| Temperature softening | >1280 |
| Cooking Surface Temperature (Degree C) | 1000-1200 |
| CO Release | ≤ 0.006% |
| NOx Release | ≤ 5ppm |
Specification
mm | Fuel gas | hole | Cells/In 2 (CPSI) | suuface |
| NG | LPG | square | round | square | round | plane | Convex diamond
Pattern | Concave
Cinquefoil
pattern | Corrugatoin
pattern |
| Φ 100 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ 110 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ 120 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ 150 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ 80 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ 135 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ 160 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
